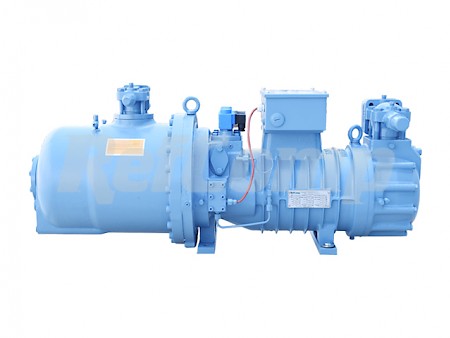

SRC-S-113/133/163 Screw Compressor


●Asymmetric screw rotor designed by RefComp, lobe ratio 5/6, excellent lubrication, perfect meshing between teeth,smooth and quiet operation of the compressor.

●Small size, filter, cut- off valve, and temperature sensors are integrated into the compressor body. Optimized Design, less space required.

●Motor protection module provides reliable protection against motor overheating, phase reversal and phase loss.

●Real-time tracking provides the operation status of the motor and system.

●Multiple duplex bearings are able to avoid rotor axial / radial wear, resulting in high load and low noise.

●Embedded oil separator.

●Multi- step separation, oil efficiency as high as 99.85%.

●Embedded 100μm high-density suction filter, easy to replace.

●Unique structure and space design, using the subcooled refrigerant gas between suction shut- off valve and the inlet side of the screw to effectively cool down the motor.

●Suction/discharge shut- off valves are able to reverse 360° , which are easily installed with flexibility.

●Embedded safety valve: high specification design, safe and reliable.

Application scope
